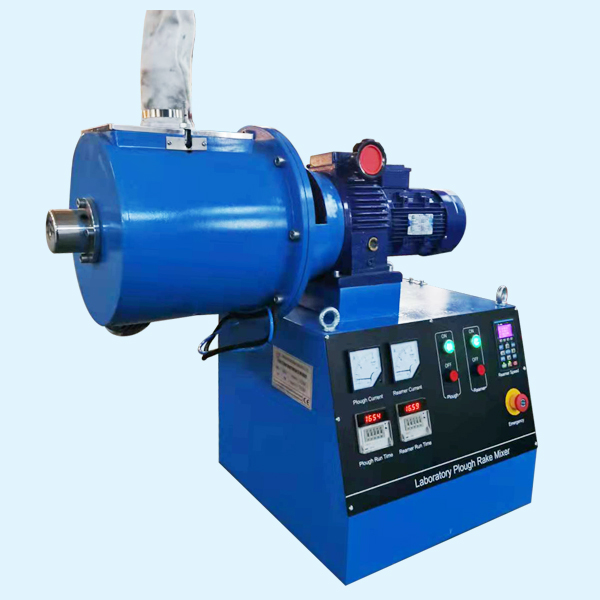

20 L laboratory mixer

RP820 20 litre mixer technical protocol

1. Usage and characteristics

RP820 20 litre mixer is developed by referring to Ludige mixer from Germany. Can be used for chemical, friction materials, food, medicine and other fields of raw material mixing. The machine is specially designed for laboratory formulation research, with the characteristics of uniform and accurate mixing ingredients, simple operation, stepless speed regulation, timing stop and so on.

2. Main technical parameters

Volume: 20 l

Working capacity: 5 ~ 16L

Spindle motor: 1.5kW, 1400r /min,380V,3 phases

Spindle speed: 280~1000rpm

Spindle timing setting: ≤99min

High speed agitator motor: 1.5kW, 2980r/min,

High speed agitator timing setting: ≤99min

Dimensions: 980x700x700mm

Weight: 300 kg

3. Working principle and structural characteristics

3.1 Working Principle

Under the action of moving plowshares, the movement tracks of material particles criss-cross and collide with each other, and the movement tracks change at any time. This movement lasts for the whole mixing process. The ploughshare pushes the turbulent vortices of the material, avoiding the creation of a stationary zone and quickly mixing the material evenly.

RP820 mixer is equipped with high speed agitator, the role of high speed agitator is crushing, prevent agglomeration, accelerate the mixing evenly, the blade can be hardened with medium carbon steel or spray hard alloy with low carbon steel surface..
