Brake pad plough and rake type mixer

RP868 800L plough and Rake Mixer technical parameters

1. Equipment Name:

RP868 800L plough and rake mixer

2. Purpose:

Widely used in friction materials, iron and steel, feed processing and other fields of raw materials mixing.

3. Equipment composition and working principle:

3.1 Equipment Composition:

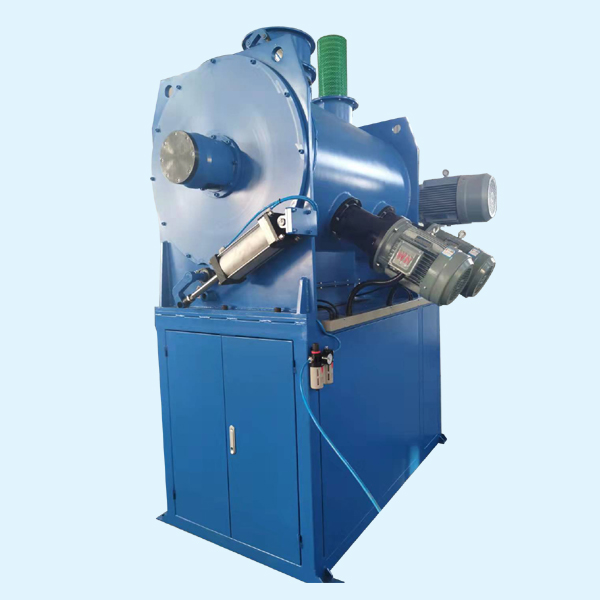

As shown in the figure below, the equipment is mainly composed of a frame, a high-speed agitator, a spindle system and a barrel body.  The main shaft is adjusted by frequency converter, and the logic control is completed by PLC. Through the input parameters of the editor, different speed, different mixing time, different crushing time and different mixing times can be set.

3.2 Working Principles

Equipment horizontal axis of the circular barrel in the middle of the horizontal axis of the design of a plow-shaped mixing shovel, the rotation of the material in the barrel of the whole space movement.  On one side of the barrel is equipped with a high speed agitator for further improving the mixing efficiency and crushing the lumps in the material to ensure the thorough mixing of powder, liquid and slurry additives.  Set mixing and crushing mechanism as a whole, is the biggest advantage of plough and rake mixer.

4. Main technical parameters:

Volume: 800 L

Working capacity: 420 ~ 600 L

Spindle motor: 22KW, 1,470 r/min, three-phase 380V frequency conversion speed regulation

High speed agitator motor: 7.5* 2,2,930 r/min, three-phase 380V

Inverter brand: Taiwan Delta

Programmable controller: Siemens Smart

Electrical components :(air switch, contactor) schneider

Compressed air: pressure 4 8 bar, flow 2.5m3 /h

Automatic operation timer: ≤99 minutes

Dimensions: 2,800×1,450×2,520 mm

Weight: 2500 kg
