Brake pad steel back shot blasting machine

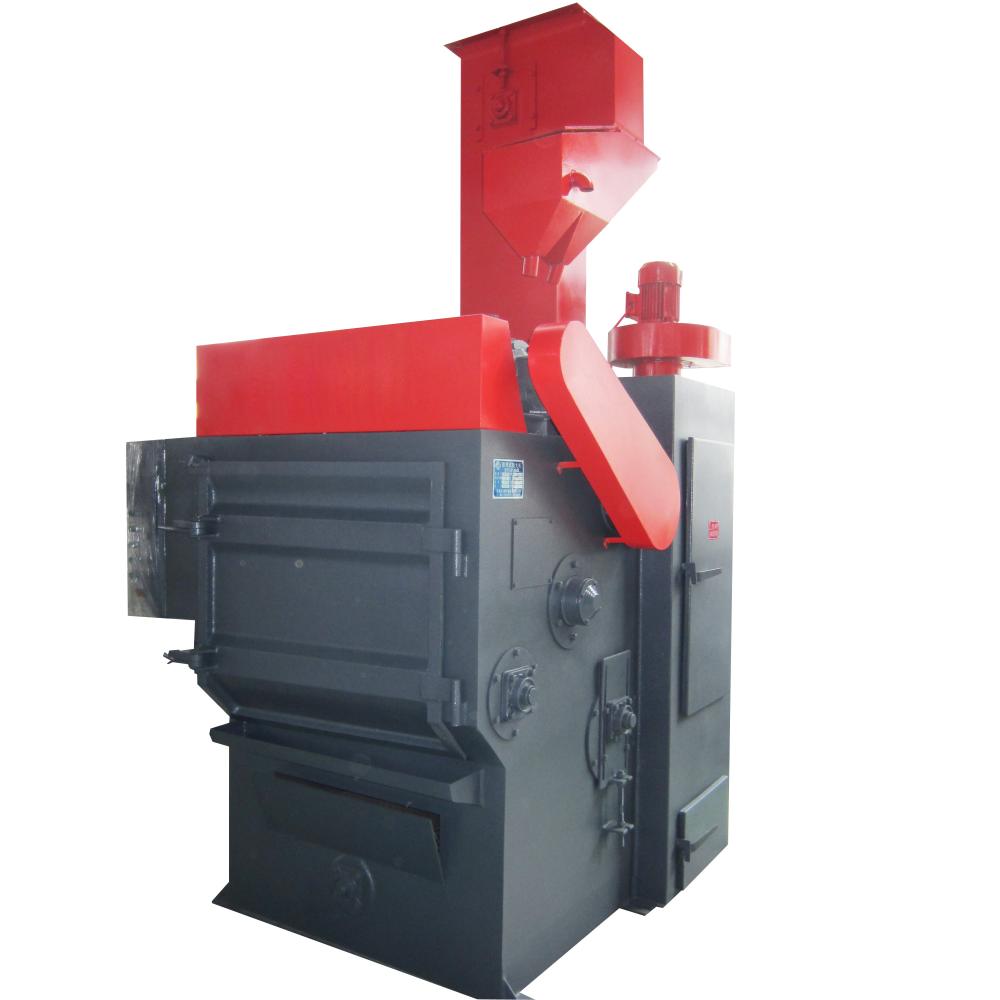

Qpl-200 Caterpillar shot blasting machine technical parameters

An overview,

Qpl-200 caterpillar shot blasting machine is suitable for surface cleaning of castings, forgings, stamping parts, heat treated parts and so on. Not only the oxidation layer and adhesive on the surface of the parts are removed, but also the process state of the workpiece surface is optimized and the surface quality of the workpiece is improved. After shot blasting, the workpiece can obtain a good quality of material, and provide a good base for electroplating and paint finishing.

The equipment compact structure, smooth operation, high production efficiency, good cleaning quality, safe and reliable work.

Two, main technical parameters

1. Cleaning room size ø 600×1100 mm

Cleaning chamber volume 200 L (the weight of a piece of work is no more than 15 kg)

2. Shot blasting device

Shot blasting capacity: 250 kg/min

Motor power: 11kW

Quantity: 1 set

3. Hoist

Lifting capacity: 12 t/h

Power: 1.1 kW

4. Separator

Separation amount: 12 T /h

5, steel shot

First load: 100 kg - 200 kg

6. Dust removal system

Secondary dust removal: sedimentation dust removal + bag dust removal

Air volume: 2300 m³/h

7. Caterpillar drive motor

Power rate: 2.2kW

8. Total power 16.5kW

9. The overall size of the host machine is 1650×1450×4000 mm
