Brake Sheet Eectrostatic Spraying Production Line

What core components make up the production line?

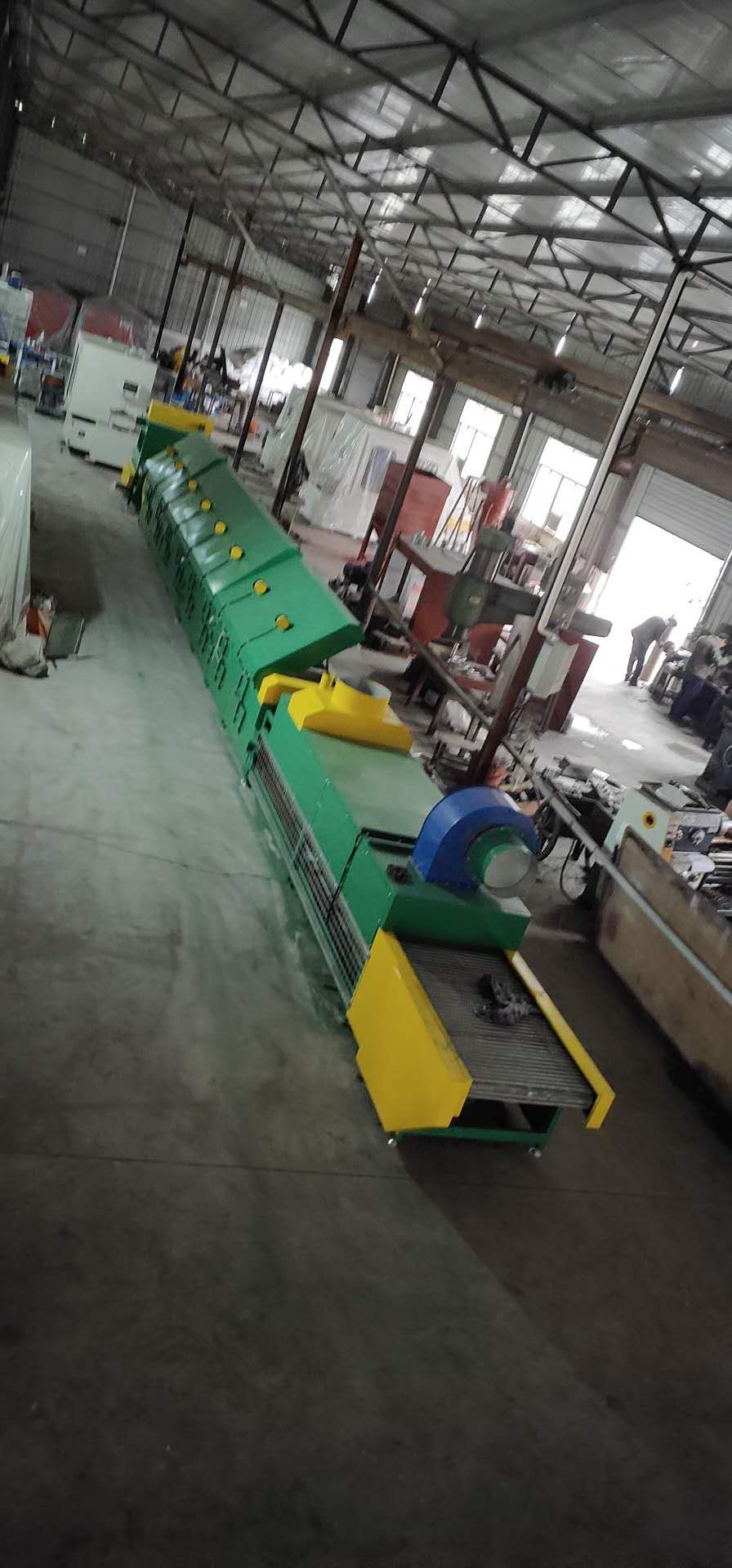

The Brake Sheet Eectrostatic Spraying Production Line is composed of baking passage, cooling section and row sheet dusting room with modular design, and all key components are selected for industrial long-term operation, with customizable network chain to adapt to different production needs:

Baking Passage: 7000MM 1200MM 1200MM in size, equipped with far infrared heating tubes and adopting steel back surface heating mode (far infrared radiation + air heating), heating time is adjustable from 8 to 15 minutes. High density aluminum silicate cotton is used for thermal insulation to reduce energy loss, and an independent power distribution cabinet with Shimandon power regulator control ensures precise temperature adjustment.

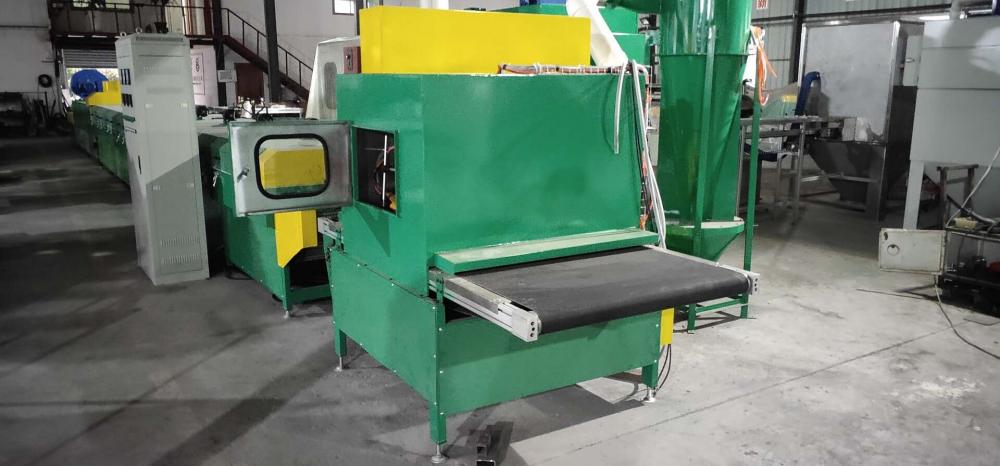

Cooling Section: 5500MM 1500MM 1500MM in size, cooled by medium pressure fan for rapid and uniform cooling of baked brake sheets, avoiding coating deformation caused by uneven cooling.

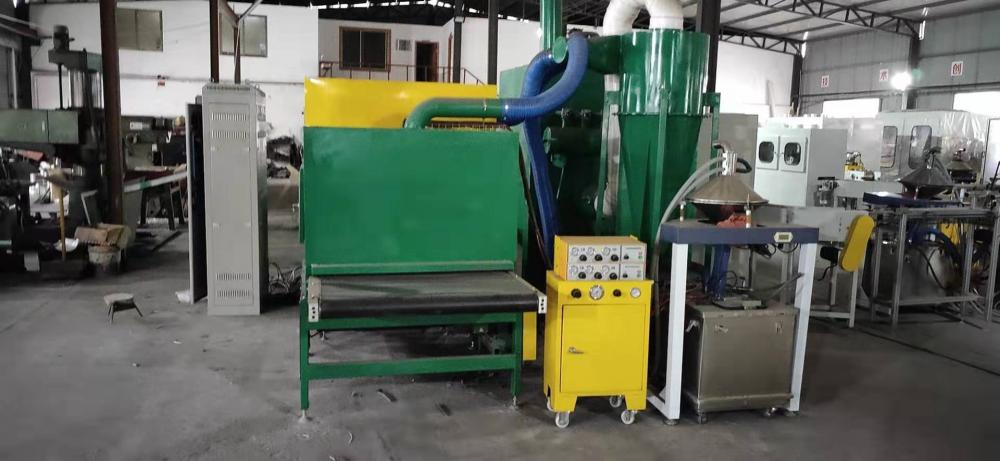

Row Sheet Dusting Room: 2200MM 1200MM 1900MM in size, with integral shell made of Q235 cold rolled sheet for high structural stability. Equipped with two spray guns with separate stainless steel powder boxes, the top vacuuming design effectively controls dust pollution, and the independent stainless steel powder box with vibrating screen ensures uniform powder supply.

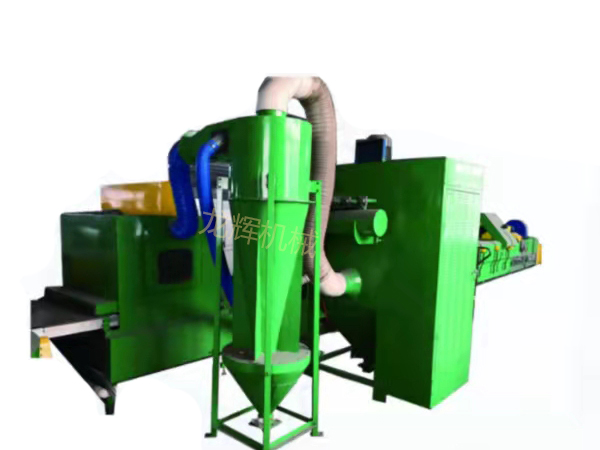

Transmission & Powder System: Adopts 970mm width ball network chain (customizable for replacement); the powder recycling box is equipped with six 300*600 high density filters (39.6 ㎡ filtering area) and a separate 5.5kW high-pressure fan for efficient powder recovery, and the vortex spiral barrel exclusive for the powder spraying line further improves powder utilization rate.

What are the core advantages of the production line?

Combining Longhui Machinery’s years of experience in friction material equipment R&D, the LHKM-1 production line has the following core advantages for brake sheet electrostatic spraying:

1. High-efficiency & Precise Coating

Far infrared radiation + air composite heating ensures uniform temperature in the baking passage, and the precise power regulator control realizes stepless temperature adjustment, matching the curing requirements of different brake sheet coatings; the double spray gun design in the dusting room and uniform powder supply system ensure consistent coating thickness and no dead angle spraying.

2. Energy Saving & Environmental Protection

High density aluminum silicate cotton thermal insulation layer reduces heat loss of the baking passage by more than 30%; the closed dusting room with top vacuuming and high-efficiency powder recycling system (39.6 ㎡ filtering area) realizes high powder utilization, avoiding dust pollution and raw material waste, meeting the environmental protection requirements of industrial production.

3. Stable & Durable Operation

All key components adopt industrial-grade configuration, the Q235 cold rolled sheet shell and ball network chain ensure the long-term stable operation of the equipment; the independent power distribution cabinet and separate fan design reduce equipment failure rate and facilitate daily maintenance.

4. Flexible Customization

The 970mm width ball network chain can be customized and replaced according to the customer’s production needs, and the heating time (8-15 minutes) can be adjusted freely, adapting to the production of different specifications and types of brake sheets, with strong scalability.

What are the supply and after-sales services?

1. Supply & Packaging

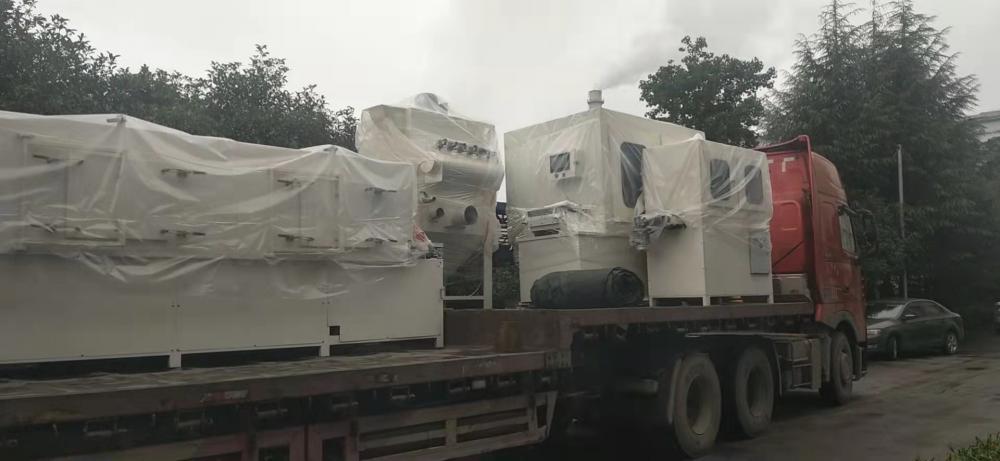

The Brake Sheet Eectrostatic Spraying Production Line is brand new and delivered in whole container packaging to avoid transportation damage; the supply capacity supports bulk order customization, and the delivery time is determined according to the customer’s actual order quantity.

2. Transportation & Port

Support ocean and land transportation, the nearest shipping ports are Ningbo Port and Shanghai Port, which can provide convenient logistics solutions for global customers and shorten the transportation cycle.

3. Payment & Incoterms

Payment methods: T/T, L/C; Incoterms: EXW, FOB, flexible payment terms to meet the different settlement needs of international customers.

4. Professional After-sales

As a professional brake pad equipment manufacturer, Longhui Machinery provides one-stop after-sales services including equipment installation guidance, commissioning, operation training and regular maintenance; the technical service team responds quickly to solve the customer’s equipment operation problems in a timely manner, and we focus on building long-term cooperative partnerships with customers, not one-time transactions.

Why choose Longhui Machinery's spraying production line?

Professional Customization: Focus on Brake Sheet Eectrostatic Spraying Production Line R&D and production for more than 10 years, with deep understanding of friction material production process, and can provide personalized production line solutions according to customer’s factory scale and production needs.

International Quality: The equipment has passed CE and ISO9001 certifications, complying with international industrial production standards, and the product quality is recognized by global customers.

High Cost Performance: High-efficiency production design improves the customer’s production capacity and reduces the comprehensive operating cost; the energy-saving and environmental protection structure further saves the daily operation cost of the factory.

Global Service: With mature international logistics and after-sales service system, the equipment has been exported to South Africa, Nigeria, Malaysia, Algeria, Iran, Turkey and other regions, providing timely and professional technical support for global customers.
