Bus brake pad combination grinding machine

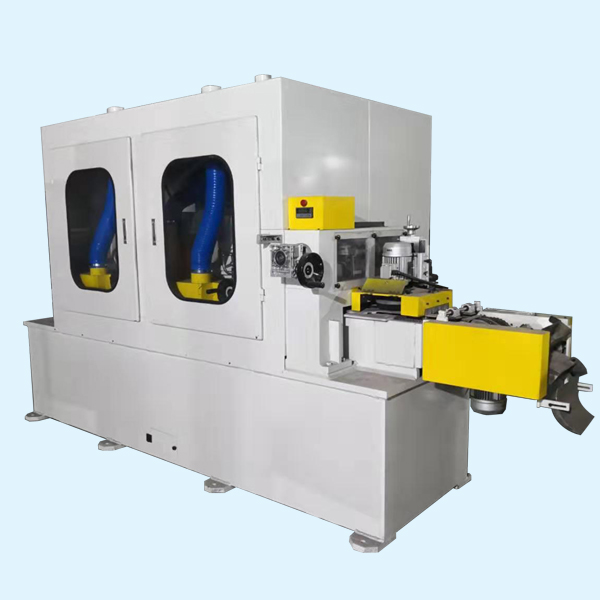

Lh-dbmc - Multi-functional Grinding Machine

Longhui company according to Europe, The United States, the Middle East market disc brake pad demand diversification characteristics, developed another high-precision multi-functional disc lining processing and grinding machine. It is a combination of ordinary linear combination grinding machine and precision combination grinding machine. It solves the problem that customers use the same fixture to fix thousands of plates. As shown in the figure below:

① The use of highly rigid rail, not only can process with nail plate lining plate technology, but also can process multi-nail plate lining plate and plate, but also can process different sizes and shapes of brake pads.

(2) Using optical delete type digital display table, convenient and intuitive, and the grinder head is not directly connected with the motor spindle, avoid folding knife, stable processing accuracy.

Using frequency conversion speed regulation, high degree of automation.

Its use characteristics are as follows:

Purpose: This grinding machine is suitable for grinding and processing various vehicles disc brake block friction material surface of the special machine.

Features: it can ensure the parallelism between the friction surface and the steel plate backplane. Suitable for continuous production mode of assembly line, automatic continuous grinding plane, grooving.

After the equipment finishes the above procedures, continuous processing can be carried out on the disk: rough grinding, slotting (straight groove), fine grinding, brush ash, (steel back up).

Equipment weight: about 6T

Machining accuracy :±0.05mm

Production capacity :600 PCS/HR
