Dust dust vacuum cleaner
Product AttributesSupply Ability & Additional InformationPackaging & Delivery< > OverviewProduct Attributes.do_overview .do_entry .do_entry_item .detail_infos p {line-height: 32px;font-size: 14px;width: 50%;float: left;}Model No.: cc30Brand: LONGHUIPlace Of Origin: ChinaStatus: NewSu......
Overview
Product Attributes
Model No.: cc30
Brand: LONGHUI
Place Of Origin: China
Status: New
Supply Ability & Additional Information
Transportation: Ocean,Land
Place of Origin: CHINA
Certificate: CE
Port: NIBOPORT,SHANGHAI PORT
Payment Type: L/C,T/T
Incoterm: FOB
Packaging & Delivery
- Selling Units:
- Others
Specifications for

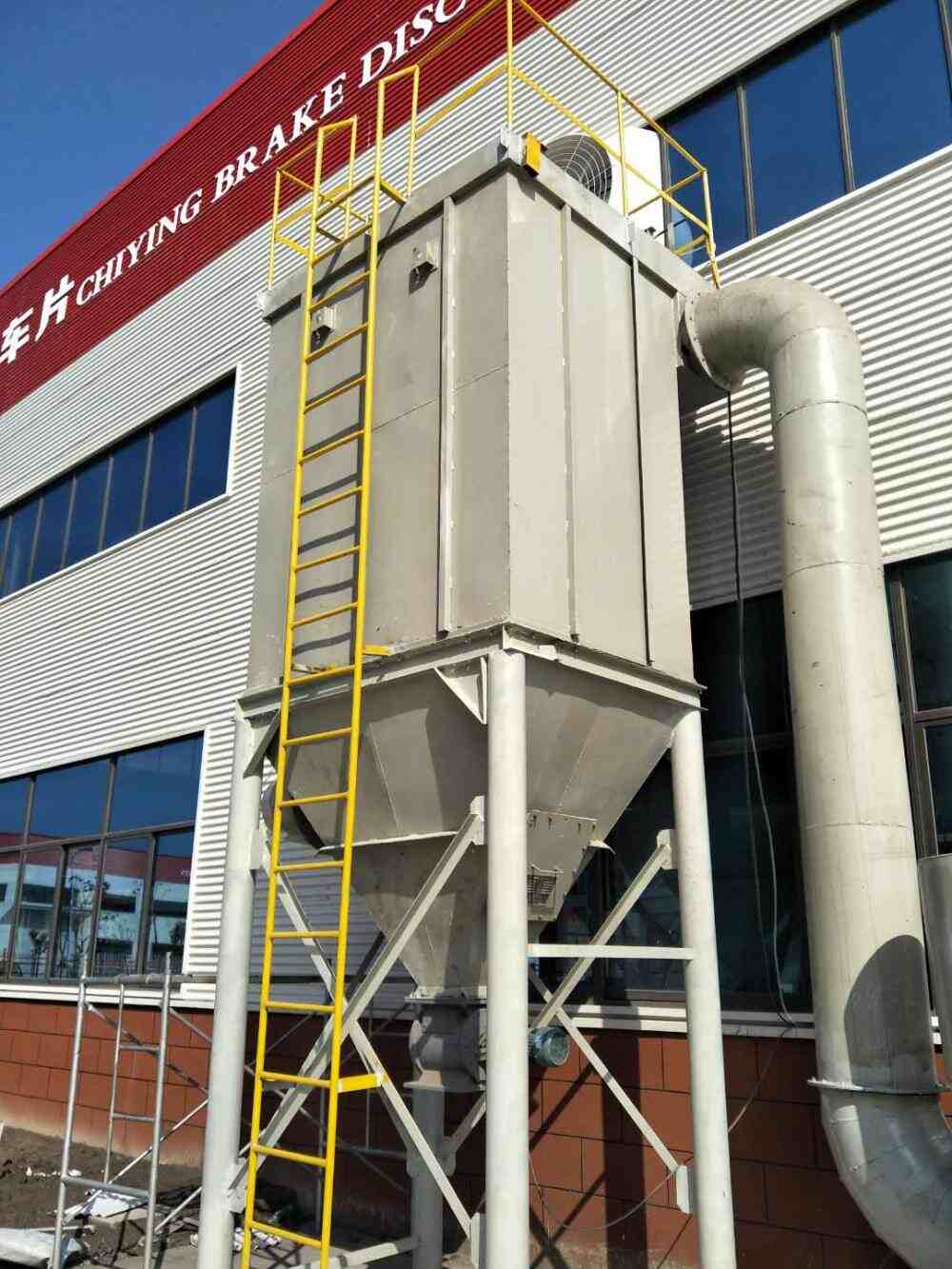

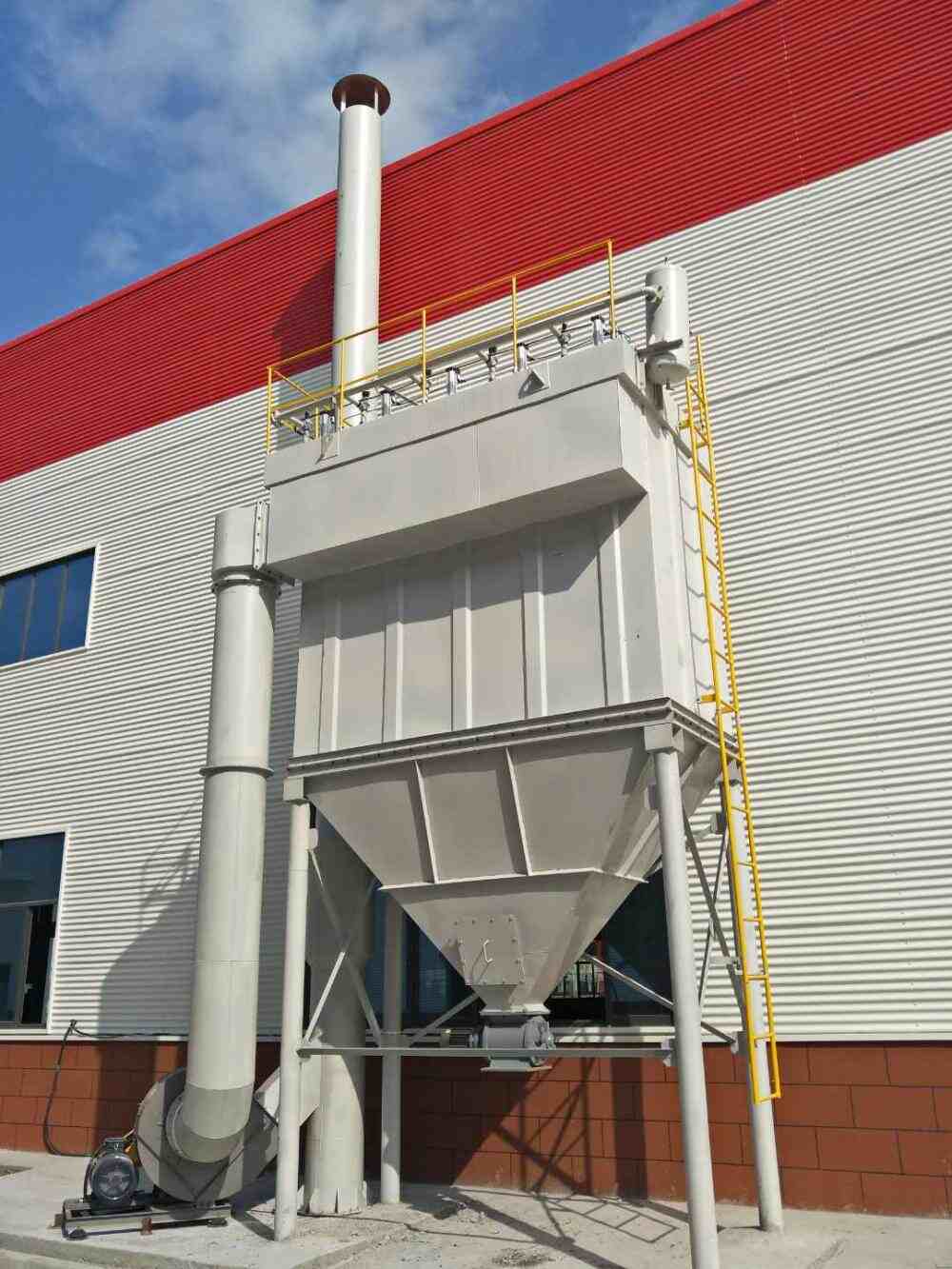

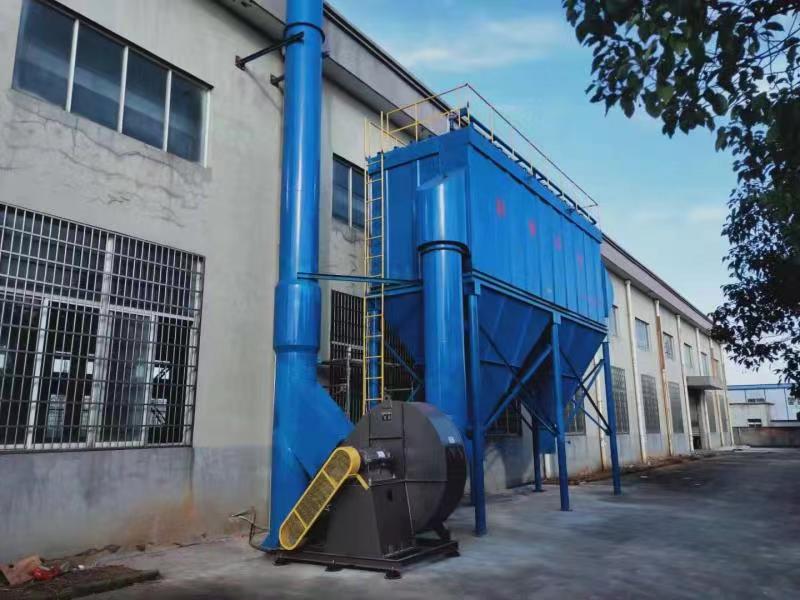

One、30kw Pulse bag-type vacuum cleaner for friction materials
1、cc30 Technical parameters of special bag vacuum cleaner for friction materials
|
Device name |
Bag cleaner |
note |
|
specifications |
CC30 |
Special use for friction materials |
|
Filter area |
200m2 |
|
|
Soot cleaning type |
Compressed air pulse jet type |
Offline automatic pulse type |
|
Parameters of |
15600-18600m3/h |
|
|
Inletdust concentration |
＜200g/Nm3 |
|
|
Dustconcentrationat outlet |
≤30mg/Nm3 |
Nationalstandard emissions |
|
Filtering wind speed |
1.1-1.7 m/min |
|
|
Maximumair leakage coefficient |
< 2% |
|
|
Theresistance loss |
1200-1770Pa |
|
|
Theequipmentbears negative pressure |
<6000Pa |
|
|
Auxiliary motor power |
30KW |
|
|
|
|
|
2、cc30 friction material special bag type vacuum cleaner equipment list
|
first part CC30 friction material special bag vacuum cleaner list |
|||||||
|
S/N |
device name |
Spec |
Qty |
note |
|||
|
1 |
box |
CC30 |
1 set |
Ash bucket |
|||
|
2 |
filter bag |
φ130×2400 |
160 PCS |
quality cloth bag |
|||
|
3 |
Support frame |
φ125×2390 |
160 PCS |
Electrostatic spraying anticorrosion |
|||
|
4 |
Pulse valve |
1.5″ |
5 PCS |
|
|||
|
5 |
cylinder |
φ60×150 |
5 PCS |
|
|||
|
6 |
gas tank |
0.4m3 |
1 PCS |
|
|||
|
7 |
Air source triplet |
|
1 set |
|
|||
|
8 |
Electrical control cabinet |
Automatic pulse control system |
1 set |
With fan control |
|||
|
9 |
Heavy hammer lock air ash discharge valve |
300×300 |
1 set |
|
|||
|
10 |
Fan and Motor |
6-48№ 8C P=30KW |
1 set |
Including integral bracket, damper, shock absorber |
|||
|
11 |
machine foot |
height adjustable |
4 PCS |
|
|||
|
12 |
stepladder |
|
1 set |
|
|||
|
Part II list of outdoor pipes and chimneys |
|||||||
|
1 |
duct |
Φ550 |
4.5m |
|
|||
|
2 |
Duct Interface |
|
1 PCS |
|
|||
|
3 |
90 degree interface |
Φ550 |
2 PCS |
|
|||
|
4 |
chimney |
Φ500 |
15m |
Including base and hood |
|||
|
5 |
hood |
|
1 PCS |
chimney top |
|||
|
6 |
Air duct reducer |
|
1 PCS |
|
|||
|
7 |
Chimney connection short |
|
1 PCS |
|
|||
